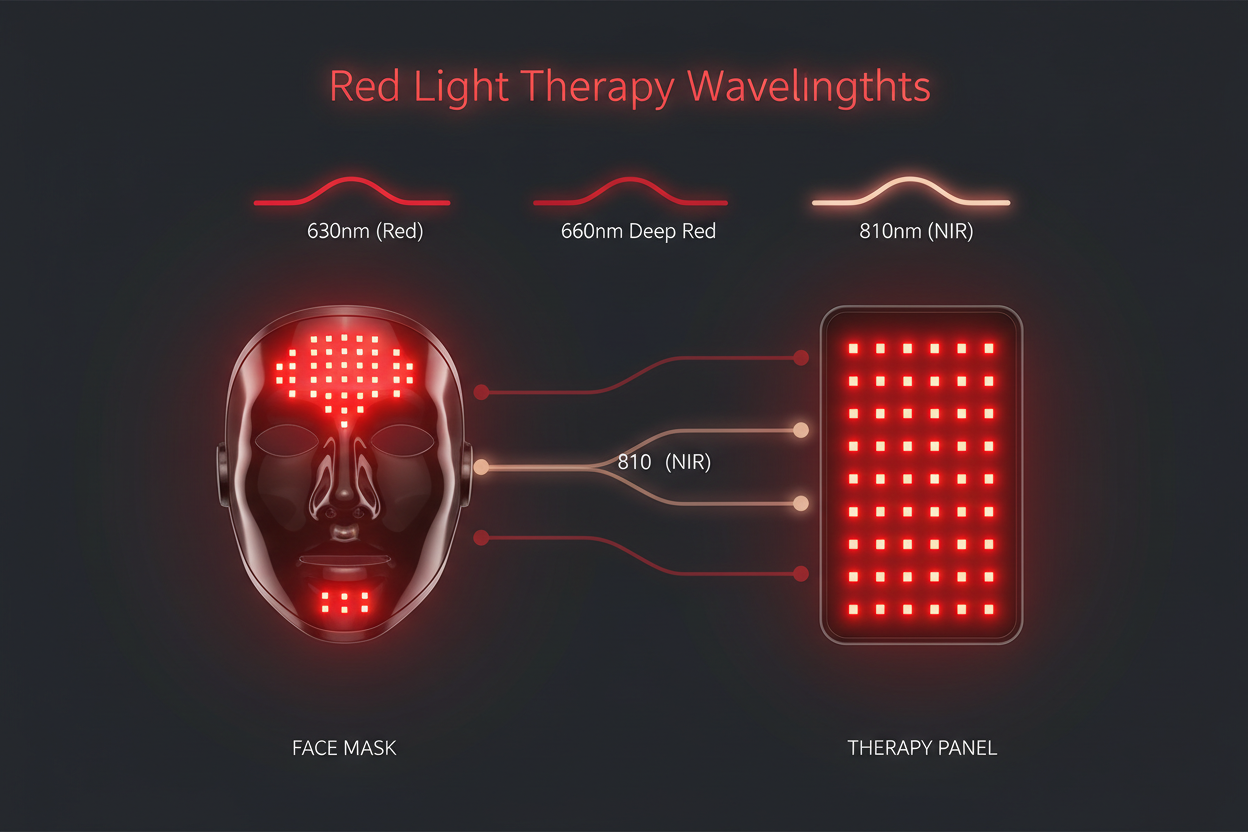

Red Light Therapy Wavelengths Explained: Panels vs. Face Masks

Most red light therapy content tells you it “works.” Very few tell you why — or that different wavelengths do completely different things.

If you've ever stood in front of a panel wondering which settings actually matter, or debated between a panel and a face mask, this post is for you. We're breaking down the wavelengths, matching them to goals, covering dosing (the part everyone skips), and giving you an honest panel-vs-mask comparison.

Let's get into it.

What Is Photobiomodulation?

Red light therapy — technically called photobiomodulation (PBM) — uses specific wavelengths of visible red and near-infrared (NIR) light to stimulate cellular function. The light is absorbed by chromophores in your mitochondria (primarily cytochrome c oxidase), which increases ATP production, reduces oxidative stress, and triggers downstream effects like collagen synthesis, reduced inflammation, and improved circulation. (Cardoso et al., 2022 — Frontiers in Neuroscience; Ferraresi et al., 2016 — J. of Biophotonics)

Not all wavelengths do this equally. The wavelength determines how deep the light penetrates and what tissue it affects.

The Wavelength Breakdown

Visible Red (630–670 nm) — Surface to Shallow Tissue

These wavelengths penetrate skin-deep — roughly 1–3mm. They're your skin, collagen, and surface-level healing wavelengths.

Key callout: 660 nm is the workhorse of the visible red range. It has the deepest research base for skin benefits — a single-blinded study found that pulsed 660 nm LED treatments increased type-1 procollagen by 31% and reduced wrinkle severity in over 87% of participants. (Baez & Reilly, 2007 — J. of Investigative Dermatology) However, it's also the strongest wavelength for stimulating hair follicle activity — something to be aware of if you've had laser hair removal or are managing unwanted facial hair. More on that below.

Near-Infrared (810–1060 nm) — Deep Tissue

NIR wavelengths are invisible to the eye and penetrate much deeper — into muscle, joints, nerves, and even bone. This is where recovery, pain management, and neurological benefits live.

Key callout: 810 and 850 nm are the NIR workhorses. 810 is particularly well-studied for neurological and nerve-related applications — a randomized, sham-controlled, double-blinded trial found that transcranial PBM at 810 nm significantly modulated neural oscillations, increasing alpha, beta, and gamma power while reducing delta and theta activity. (Zomorrodi et al., 2019 — Scientific Reports) Meanwhile, 850 is the go-to for muscle and recovery.

The Dead Zone (~700–770 nm)

You might notice a gap between the red and NIR ranges. Wavelengths in the ~700–770 nm range have limited biochemical activity — light in this zone is poorly absorbed by the key chromophores that drive photobiomodulation. If a device only offers wavelengths in this range, it's not giving you much.

Matching Wavelengths to Your Goals

This is where it gets practical. Instead of running every wavelength at max and hoping for the best, here's how to think about it by goal.

The Hair Growth Factor — What No One Talks About

Here's something most red light therapy content ignores: certain wavelengths actively stimulate hair follicles.

660 nm is the biggest driver, with 630 nm close behind. 850 nm also has some evidence at the deeper follicle level.

If Hair Regrowth IS Your Goal

Good news — red light therapy is one of the most well-supported non-pharmaceutical options for hair loss. LLLT was FDA-approved for androgenetic alopecia in 2007, and a systematic review of FDA-cleared devices confirmed statistically significant hair regrowth in randomized controlled trials. (Suchonwanit et al., 2022 — PMC; Afifi et al., 2022 — Indian Dermatology Online Journal) Here's your protocol:

Target the scalp directly at close range (2–6 inches), 10–15 minutes per session, 3–5x per week. Consistency matters more than intensity — a 16-week multicenter RCT showed LLLT increased hair density by 41.9 hairs/cm² and hair thickness by 7.5 μm compared to sham, with no adverse events. (Yoon et al., 2020 — Medicine)

If You've Had Laser Hair Removal

Flip side: if you've invested in laser hair removal, electrolysis, or are managing hormonal hair growth, running a full-spectrum panel directly on treated areas can work against those results. Those same follicle-stimulating wavelengths don't know the difference between your scalp and your face.

The practical fix: Cover treated areas with a damp towel during full-body sessions. The towel blocks the red/NIR light effectively. Then, if you want a dedicated skin session for wrinkles and anti-aging on those areas, use only the wavelengths that don't stimulate follicles — 670, 810, and 830 are your best options.

Chromotherapy: The Vibes Layer

If your infrared sauna has built-in chromotherapy — those colored LED lights that cycle through the rainbow — you've probably wondered whether they're doing anything real.

Honest answer? The evidence here is way softer than the PBM research above. Chromotherapy lives more in the traditional wellness space than in clinical journals. But I'll say this: when you're already in a sauna session stacking heat and light for recovery, the ambient color actually does shift the experience. Not in a “this is curing something” way — in a “this changes how the session feels” kind of way.

Here's the general thinking behind each color:

Bottom line: chromotherapy is the candle-and-playlist of the sauna world. It's not doing the heavy lifting — your panel wavelengths handle that. But it sets the mood, and sometimes the mood matters more than we give it credit for. I run green or blue during my evening sessions and honestly, it just feels right. That's not science — that's experience. And I'm okay with that.

Dosing — The Part Most Articles Skip

This is where people go wrong. More is not better.

The biphasic dose response is real: red light therapy follows a curve where too little does nothing, the right amount triggers a therapeutic response, and too much actually blunts the benefits. Over-exposure can increase oxidative stress — the opposite of what you're going for. This has been well-documented in both cell culture and animal studies. (Huang et al., 2009 — Dose-Response; Huang et al., 2011 — Dose-Response (Update))

Key dosing principles:

Session length: 10–20 minutes per session at typical panel distance (6–12 inches from the device). Closer = higher irradiance = shorter session needed.

Energy density matters more than time alone. The metric that matters is joules per square centimeter (J/cm²) — that's irradiance × duration. Most clinical protocols target 4–30 J/cm² depending on tissue depth and goal.

1060 nm needs more energy. It's less photochemically active per photon than 810 or 850 nm, so you need roughly 1.5x the fluence for an equivalent response.

Frequency: Most evidence supports 3–5 sessions per week, not daily saturation. Rest days matter — your cells need time to respond.

Eye protection: NIR wavelengths are invisible, so your pupils don't constrict to protect your retinas. Use goggles, especially at close range.

Panels vs. Face Masks — The Honest Comparison

This is the question everyone asks. Here's the real answer.

The honest take: A mask is a skin tool, not a full photobiomodulation tool. If your only goal is collagen, anti-aging, or acne — a mask is fine, and the convenience is genuinely useful. You can wear it while working, reading, or on a call.

But if your goals include muscle recovery, joint pain, nerve support, or systemic anti-inflammatory benefits, you need a panel. The NIR wavelengths and the irradiance just aren't there in masks.

Stacking both is a legitimate approach: mask for daily skin maintenance, panel 3–5x per week for deep tissue work.

The Takeaway

Red light therapy isn't one-size-fits-all. The wavelength determines the depth and target, the dose determines the outcome, and the device determines what's even possible.

Know your goal. Match it to the right wavelengths. Don't overdo the dosing. And pick the device that actually fits what you're trying to accomplish — not just what looks good on Instagram.

Enjoy the process. Scale better.

— Laura

All views expressed are my own. Nothing shared here is financial, legal, or professional advice... and AI is used ;)

Studies Referenced

• Cardoso et al. (2022) — Photobiomodulation of cytochrome c oxidase by chronic transcranial laser. Frontiers in Neuroscience
• Baez & Reilly (2007) — Regulation of skin collagen metabolism using pulsed 660 nm LED. J. of Investigative Dermatology
• Zomorrodi et al. (2019) — Pulsed NIR transcranial PBM modulates neural oscillations. Scientific Reports
• Huang et al. (2009) — Biphasic dose response in low level light therapy. Dose-Response
• Huang et al. (2011) — Biphasic dose response in LLLT — an update. Dose-Response
• Suchonwanit et al. (2022) — Systematic review of FDA-approved LLLT devices for pattern hair loss. PMC
• Afifi et al. (2022) — Role of LLLT in androgenetic alopecia. Indian Dermatology Online J.
• Yoon et al. (2020) — LLLT helmet-type device for androgenetic alopecia, 16-week RCT. Medicine
